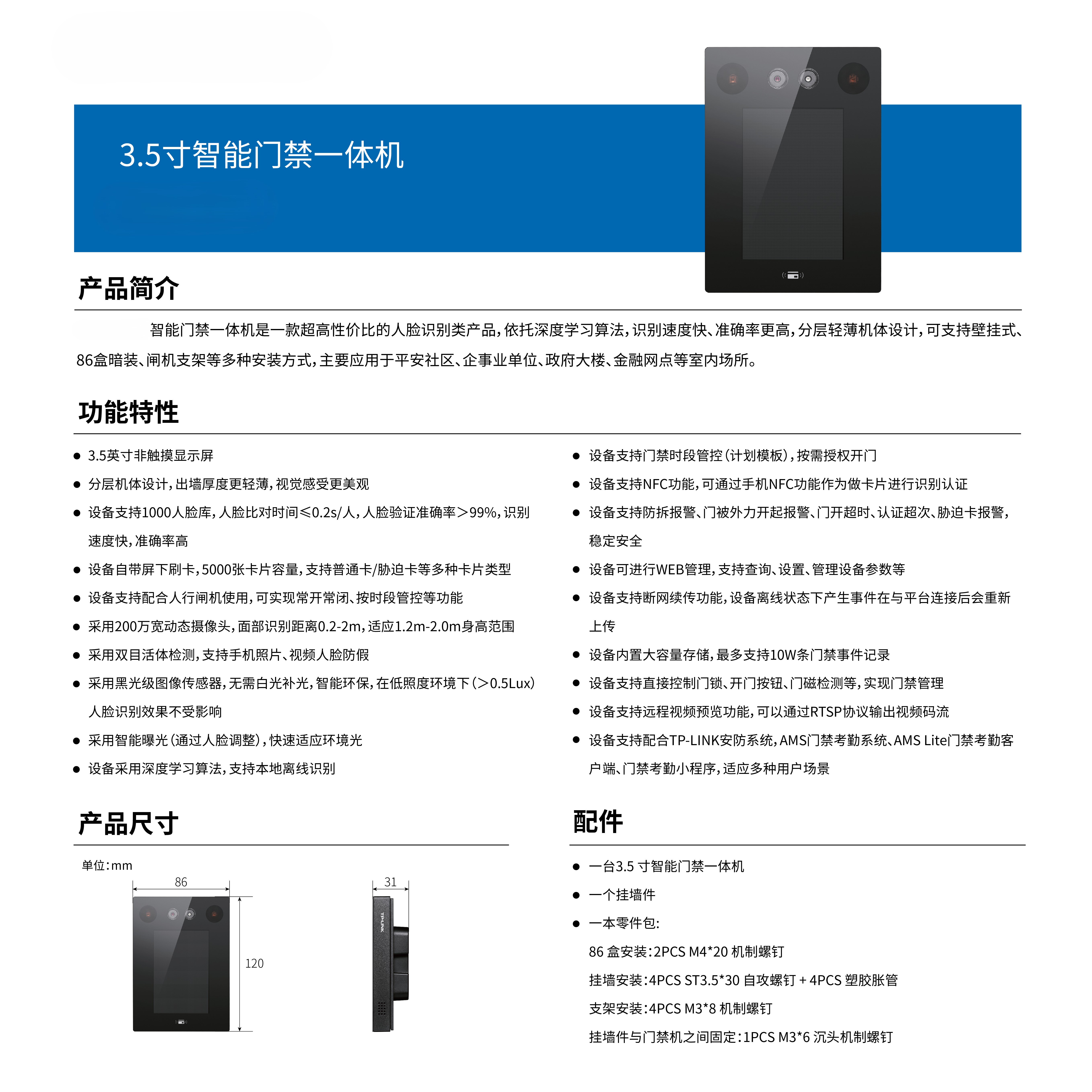

3.5-inch Smart Access Control All-in-One Machine

3.5-inch Smart Access Control All-in-One Machine 223SA

3.5-inch Non-Touch Display Screen

Layered body design, thinner and lighter when protruding from the wall, more aesthetically pleasing.

Supports a 1000-face database, face comparison time ≤0.2s/person, face verification accuracy >99%. Built-in under-screen card reader, 5000-card capacity, supports various card types including regular cards and duress cards.

Supports multiple installation methods including surface mounting, recessed mounting in 86-type boxes, and pedestrian gate bracket installation. Utilizes a 2MP wide dynamic range camera, with a wide facial recognition distance. 0.2-2m, suitable for height ranges of 1.2m-2.0m.

Utilizes a black-light level image sensor, ensuring unaffected facial recognition performance in low-light environments (greater than 0.5Lux).

Employs deep learning algorithms, supporting local offline recognition.

Supports access control time-slot management (planned templates), authorizing door opening on demand.

Supports anti-tamper alarms, alarms for doors opened by external force, door opening timeouts, authentication overruns, and duress card alarms. Supports network outage resume function. Built-in large-capacity storage, supporting up to 100,000 records. The device is compatible with security systems, AMS access control and attendance systems, and AMS... Lite Access Control and Attendance Client/Mini Program

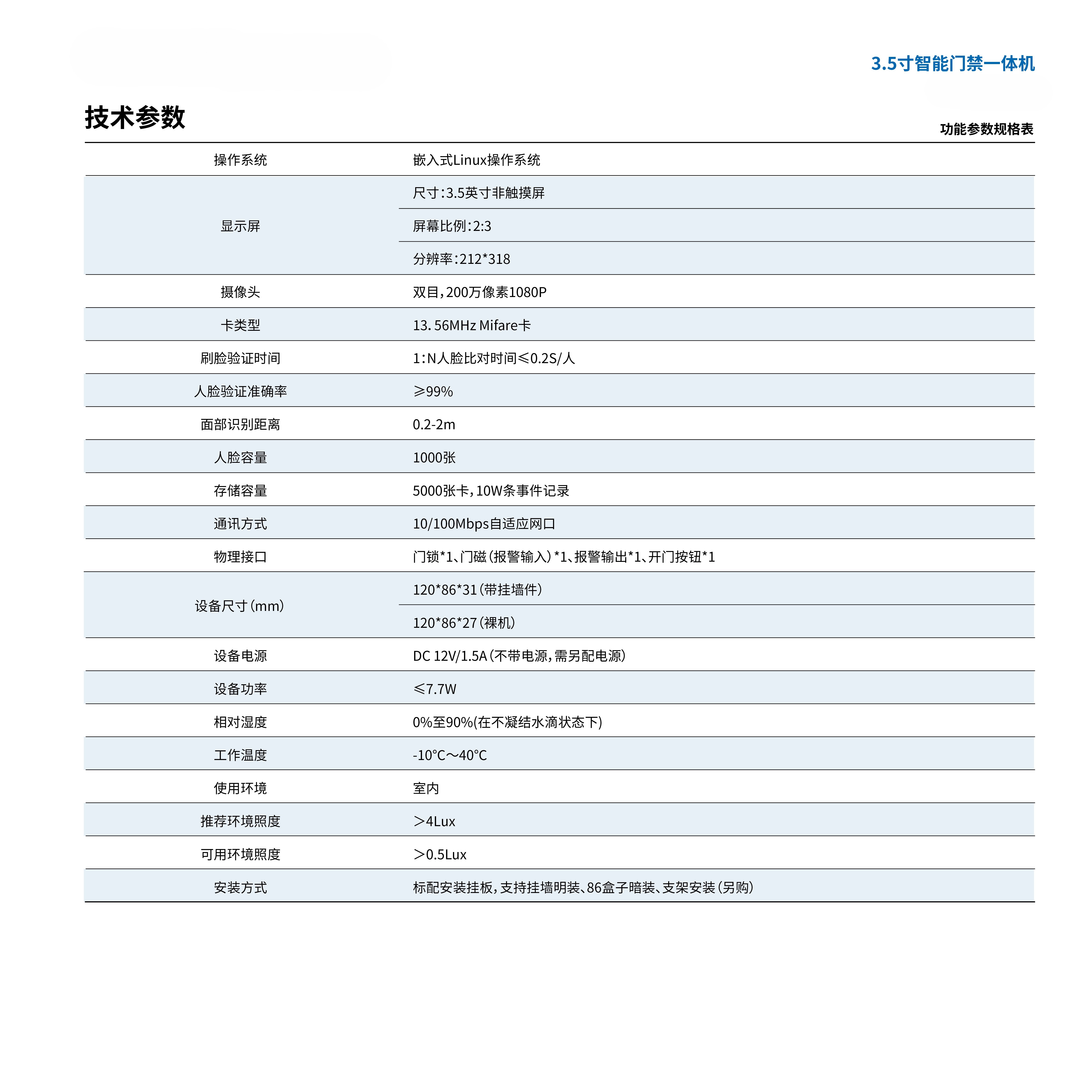

Technical Parameters

Operating System

Embedded Linux Operating System

Display

Size: 3.5 inches (non-touchscreen)

Screen Ratio: 2:3

Resolution: 212*318

Camera

Dual-lens, 2MP 1080P

Card Type

13.56MHz Mifare Card

Face Verification Time

1:N face comparison time ≤0.2s/person

Face Verification Accuracy

≥99%

Face Recognition Distance

0.2-2m

Face Capacity

1000 faces

Storage Capacity

5000 cards, 100,000 event records

Communication Method

10/100Mbps adaptive network port

Physical Interfaces

Door lock*1, door sensor (alarm input)*1, alarm output*1, door open button*1

Device Dimensions

120mm*86mm*27mm

Device Power Supply

DC 12V/1.5A (Power supply not included, requires separate supply)

Equipment Power

≤7.7W

Relative Humidity

0% to 90% (without condensation)

Operating Temperature

-10℃~40℃

Operating Environment

Indoor

Recommended Ambient Illumination

>4Lux

Available Ambient Illumination

>0.5Lux

Installation Methods: Standard mounting plate included; supports surface mounting, concealed mounting via 86-type junction box, and bracket mounting (sold separately)
